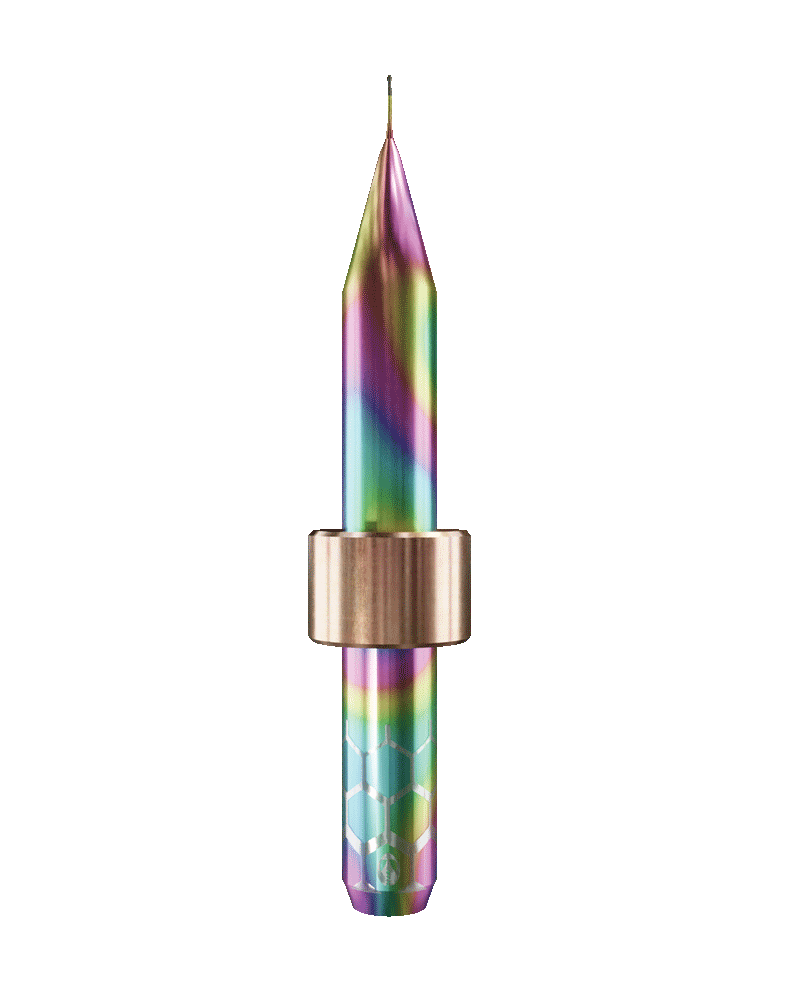

ZT.DIA.B2.03.6.030.53.X.R6 | 0.3mm Zirconia Bur for Imes-Icore* 6mm Shaft/PM7* Machines (2-Flute Ball)
0.3mm 2-Flute Ball Carbide Milling Bur for Zirconia
FLATCOAT® DIA Coating, Shaft Diameter of 6mm, Brass Ring (17mm from Shaft End).
Note: only recommended for machines open CAM software where the milling strategy can be adjusted.
Original Machine Manufacturer Article Number: T33
Original price was: $189.99.$157.99Current price is: $157.99.
0.3mm 2-Flute Ball Carbide Milling Bur for Zirconia
FLATCOAT® DIA Coating, Shaft Diameter of 6mm, Brass Ring (17mm from Shaft End).
Note: only recommended for machines open CAM software where the milling strategy can be adjusted.
Original Machine Manufacturer Article Number: T33
18 in stock (can be backordered)
Milling Material
Green-State Zirconia, Sinter-Metal
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
0.3mm
Corner Radius (CR)
0.15mm
Flute Length (FL)
0.27mm
Reach Length (RL)
3.0mm
Neck Diameter (ND)
0.27mm
Overall Length (OL)
53mm
Shank Diameter (SD)
6mm
Measurement Protocol (to 1 Micron)
No
Internal Coolant
no
Industry-Specific Collection
Dental Lab
Ring Type
Brass Ring (17mm from Shaft End)
Machine Model
Imes Icore CORiTEC 6mm Shaft*, Ivoclar PrograMill PM7*, Mani Schuetz Dental Tizian Cut 5.2*
