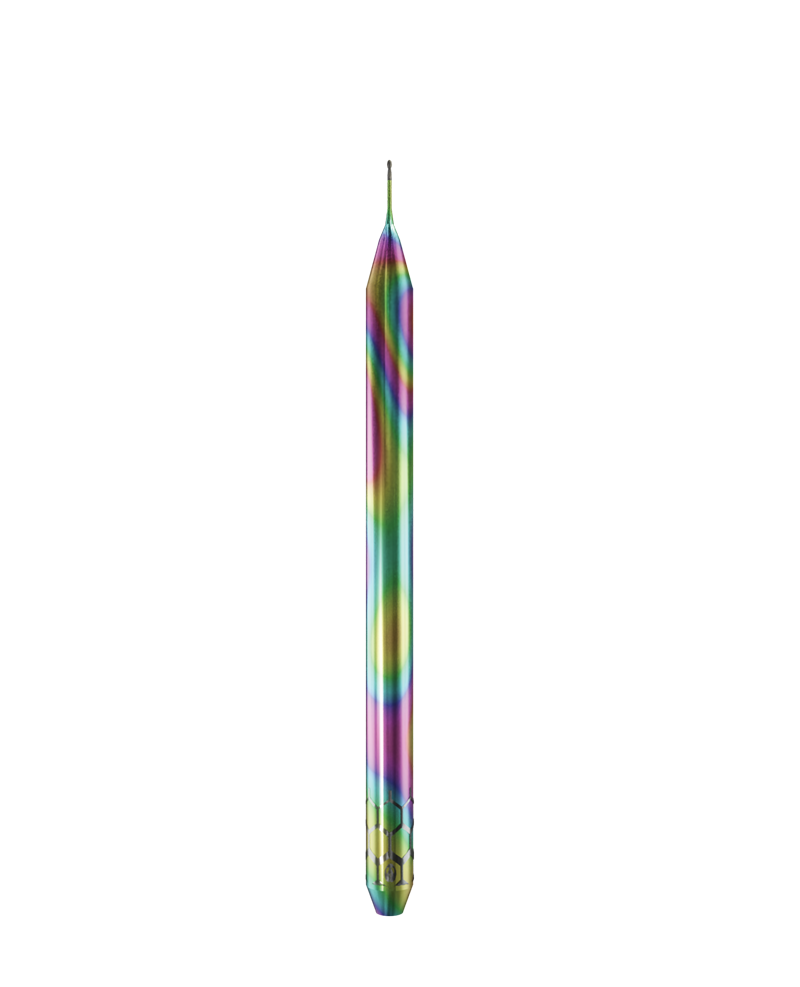

ZT.DIA.B2.03.3.030.48.X.R0 | 0.3mm Zirconia Bur for Open Machines (2-Flute Ball)
0.3mm 2-Flute Ball Carbide Milling Bur for Zirconia
FLATCOAT® DIA Coating, Shaft Diameter of 3mm, No Ring.
Note: only recommended for machines open CAM software where the milling strategy can be adjusted.
Original price was: $117.99.$97.99Current price is: $97.99.
0.3mm 2-Flute Ball Carbide Milling Bur for Zirconia
FLATCOAT® DIA Coating, Shaft Diameter of 3mm, No Ring.
Note: only recommended for machines open CAM software where the milling strategy can be adjusted.
18 in stock (can be backordered)
Milling Material
Green-State Zirconia, Sinter-Metal
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
0.3mm
Corner Radius (CR)
0.15mm
Flute Length (FL)
0.27mm
Reach Length (RL)
3.0mm
Neck Diameter (ND)
0.27mm
Overall Length (OL)
48mm
Shank Diameter (SD)
3mm
Measurement Protocol (to 1 Micron)
No
Internal Coolant
no
Industry-Specific Collection
Dental Lab
Ring Type
No Ring
Machine Model
3M Espe Lava CNC 240*, Charly Dental CD 50*, Datron D5*, DMG Mori Ultrasonic*, Röders*, Wissner GAMMA 202*
