INDUSTRIAL
ST.TTN.T4.20.4.120.48.G.HRC

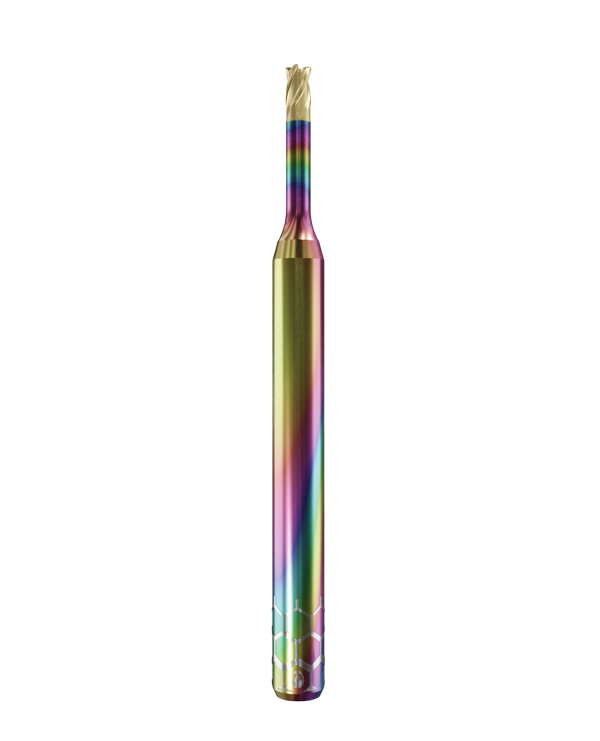

2.0mm 4-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 12.0mm Radius: 0.1mm Shaft: 4mm.
Sentinel 67 Series
Original price was: $147.99.$122.99Current price is: $122.99.
2.0mm 4-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 12.0mm Radius: 0.1mm Shaft: 4mm.
Sentinel 67 Series
5 in stock (can be backordered)
Milling Material
Cast Iron, Nichrome, Stainless Steel, Steel, Tough/Adhesive Material, Tungsten Copper
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® TTN Titanium Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
4
Cutting Diameter (CD)
2.0mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.1mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
4.00mm
Reach Length (RL)
12.0mm
Neck Diameter (ND)
1.9mm
Overall Length (OL)
48mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
The Sentinel 67 Series
Measurement Protocol (to 1 Micron)
No
Zecha SKU
599.T4.0200.010.120
Calculator coming soon.
