ST.TTN.F6.120.12.240.70.J.HRC

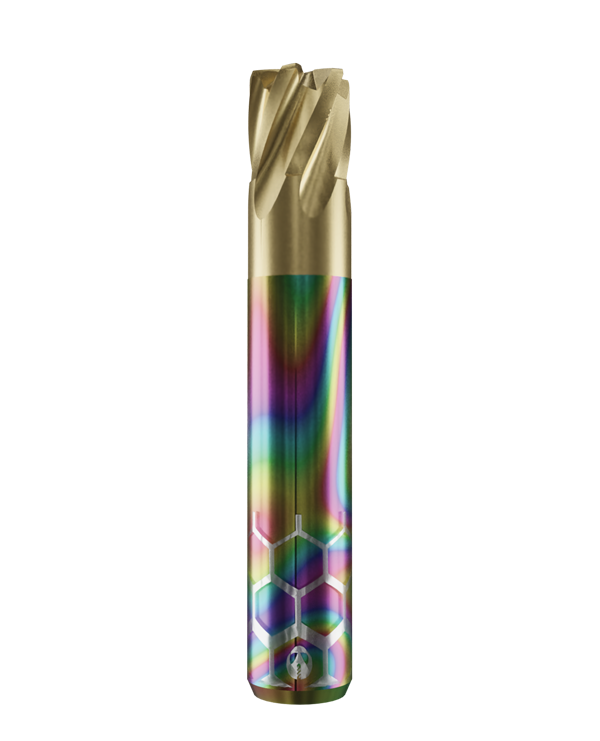

12.0mm 6-Flute Square (Flat) Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 24.0mm Shaft: 12mm.
Sentinel 67 HF Series
Original price was: $265.99.$220.99Current price is: $220.99.
12.0mm 6-Flute Square (Flat) Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 24.0mm Shaft: 12mm.
Sentinel 67 HF Series
Available on backorder
Milling Material
Cast Iron, Nichrome, Stainless Steel, Steel, Tough/Adhesive Material, Tungsten Copper
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® TTN Titanium Coating
Cutting Geometry (CG)
Square (Flat)
Flutes
6
Cutting Diameter (CD)
12.0mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.2mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
6.00mm
Reach Length (RL)
24.0mm
Neck Diameter (ND)
11.9mm
Overall Length (OL)
70mm
Shank Diameter (SD)
12mm
Shaft Tolerance
H4
Special Tool Series
The Sentinel 67 HF Series, The Sentinel 67 Series
Measurement Protocol (to 1 Micron)
No
Zecha SKU
599.HF6.1200.036.240
