INDUSTRIAL
ST.TTN.F4.30.6.090.50.I.HRC

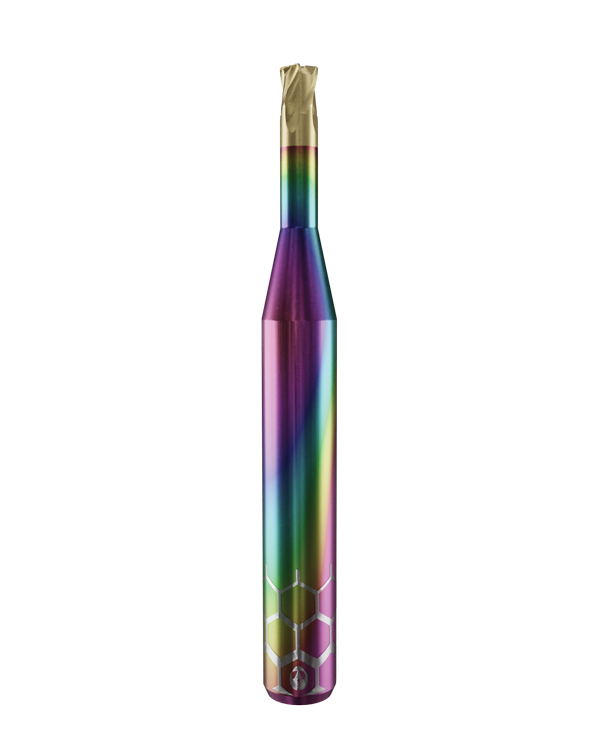

3.0mm 4-Flute Square (Flat) Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 9.0mm Shaft: 6mm.
Sentinel 67 HF Series
Original price was: $158.99.$131.99Current price is: $131.99.
3.0mm 4-Flute Square (Flat) Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 9.0mm Shaft: 6mm.
Sentinel 67 HF Series
Out of stock
Milling Material
Cast Iron, Nichrome, Stainless Steel, Steel, Tough/Adhesive Material, Tungsten Copper
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® TTN Titanium Coating
Cutting Geometry (CG)
Square (Flat)
Flutes
4
Cutting Diameter (CD)
3.0mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.15mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
4.00mm
Reach Length (RL)
9.0mm
Neck Diameter (ND)
2.95mm
Overall Length (OL)
50mm
Shank Diameter (SD)
6mm
Shaft Tolerance
H4
Special Tool Series
The Sentinel 67 HF Series, The Sentinel 67 Series
Measurement Protocol (to 1 Micron)
No
Zecha SKU
599.HF4.0300.009.090
Calculator coming soon.
