INDUSTRIAL

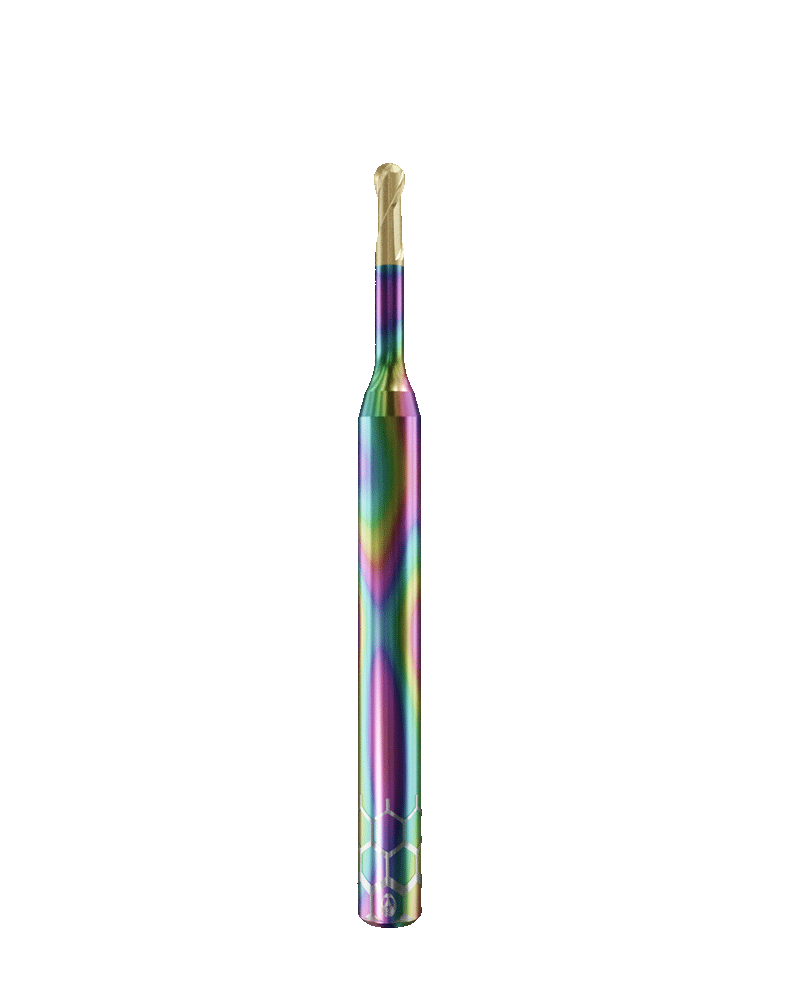

ST.TTN.B2.20.4.120.48.X.HRC
2.0mm 2-Flute Ball-Nosed Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 12.0mm Shaft: 4mm.
Sentinel 67 Series
Original price was: $122.99.$101.99Current price is: $101.99.
2.0mm 2-Flute Ball-Nosed Carbide End Mill for Steel
FLATCOAT® TTN Coating, Reach: 12.0mm Shaft: 4mm.
Sentinel 67 Series
5 in stock (can be backordered)
Milling Material
Cast Iron, Nichrome, Stainless Steel, Steel, Tough/Adhesive Material, Tungsten Copper
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® TTN Titanium Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
2.0mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
1.00mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
2.50mm
Reach Length (RL)
12.0mm
Neck Diameter (ND)
1.90mm
Overall Length (OL)
48mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
The Sentinel 67 Series
Measurement Protocol (to 1 Micron)
No
Zecha SKU
599.B2.0200.100.120
Calculator coming soon.
