NT.UNC.T4.80.8.300.70.Q

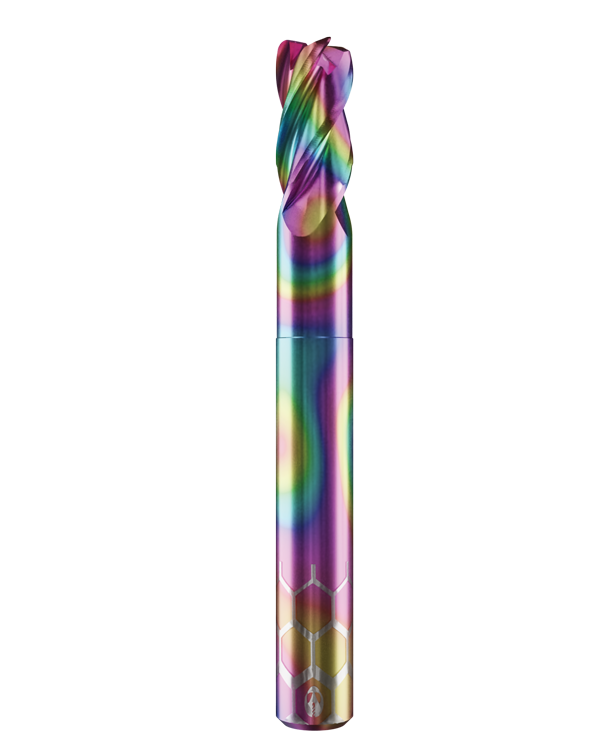

8.0mm 4-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 30.0mm Radius: 1.00mm Shaft: 8mm.
Original price was: $153.99.$127.99Current price is: $127.99.
8.0mm 4-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 30.0mm Radius: 1.00mm Shaft: 8mm.
10 in stock (can be backordered)
Milling Material
Aluminum, Brass, Copper, Gold, Non-Ferrous, Plastic, Stainless Steel, Titanium
Tool Type
End Mill
Coating Type (CT)
No Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
4
Cutting Diameter (CD)
8.0mm
Cutting Diameter Tolerance
-0.02
Corner Radius (CR)
1.00mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
12.00mm
Reach Length (RL)
30.0mm
Neck Diameter (ND)
7.82mm
Overall Length (OL)
70mm
Shank Diameter (SD)
8mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
556.T4.0800.100.300
