NT.UNC.T2.08.4.040.50.D

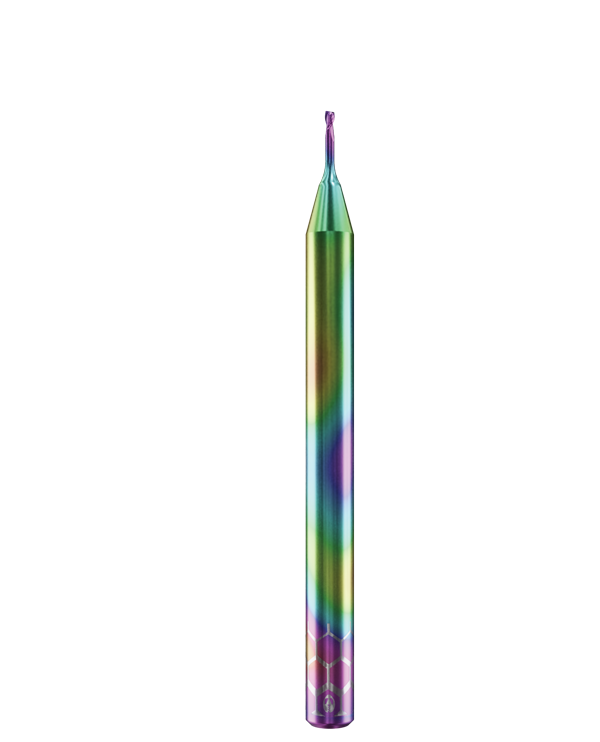

0.8mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 4.0mm Radius: 0.05mm Shaft: 4mm.
Original price was: $109.99.$90.99Current price is: $90.99.
0.8mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 4.0mm Radius: 0.05mm Shaft: 4mm.
10 in stock (can be backordered)
Milling Material
Aluminum, Brass, Copper, Gold, Non-Ferrous, Plastic, Stainless Steel, Titanium
Tool Type
End Mill
Coating Type (CT)
No Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
2
Cutting Diameter (CD)
0.8mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.05mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
1.20mm
Reach Length (RL)
4.0mm
Neck Diameter (ND)
0.74mm
Overall Length (OL)
50mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
556.0080.05.040
