NT.UNC.B3.80.8.160.70.X

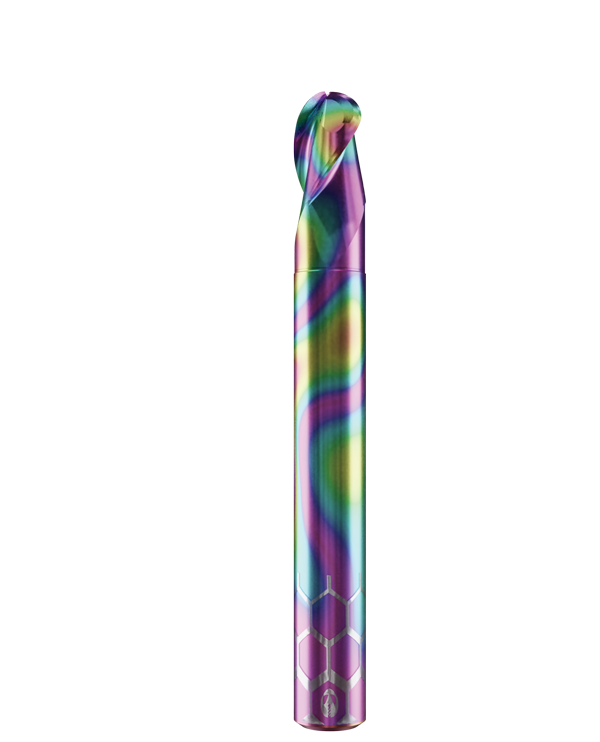

8.0mm 3-Flute Ball-Nosed Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 16.0mm Shaft: 8mm.
Original price was: $128.99.$106.99Current price is: $106.99.
8.0mm 3-Flute Ball-Nosed Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 16.0mm Shaft: 8mm.
10 in stock (can be backordered)
Milling Material
Aluminum, Brass, Copper, Gold, Non-Ferrous, Plastic, Stainless Steel, Titanium
Tool Type
End Mill
Coating Type (CT)
No Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
3
Cutting Diameter (CD)
8.0mm
Cutting Diameter Tolerance
-0.015
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
12.00mm
Reach Length (RL)
16.0mm
Neck Diameter (ND)
7.82mm
Overall Length (OL)
70mm
Shank Diameter (SD)
8mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
551.B3.0800.400.160
