INDUSTRIAL
NT.UNC.B2.04.4.060.50.X

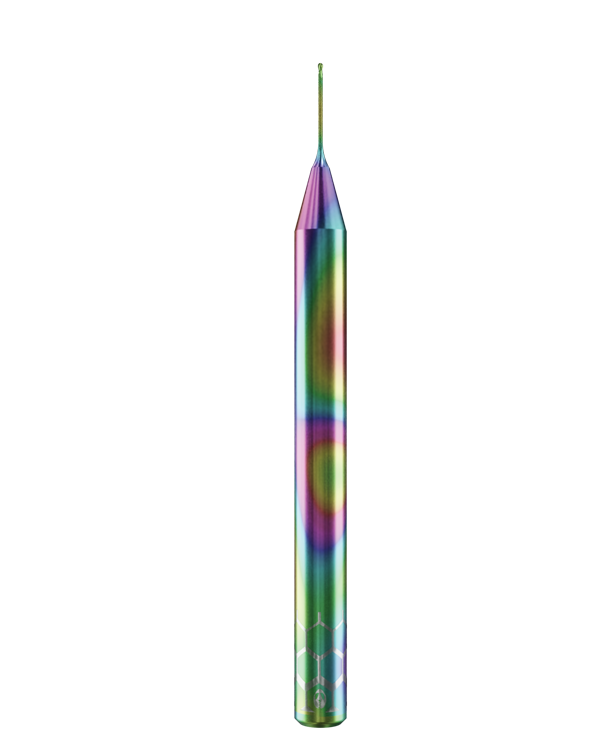

0.4mm 2-Flute Ball-Nosed Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 6.0mm Shaft: 4mm.
Original price was: $122.99.$101.99Current price is: $101.99.
0.4mm 2-Flute Ball-Nosed Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
No Coating, Reach: 6.0mm Shaft: 4mm.
10 in stock (can be backordered)
Milling Material
Aluminum, Brass, Copper, Gold, Non-Ferrous, Plastic, Stainless Steel, Titanium
Tool Type
End Mill
Coating Type (CT)
No Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
0.4mm
Cutting Diameter Tolerance
-0.01
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
0.60mm
Reach Length (RL)
6.0mm
Neck Diameter (ND)
0.34mm
Overall Length (OL)
50mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
551.0040.20.060
Calculator coming soon.
