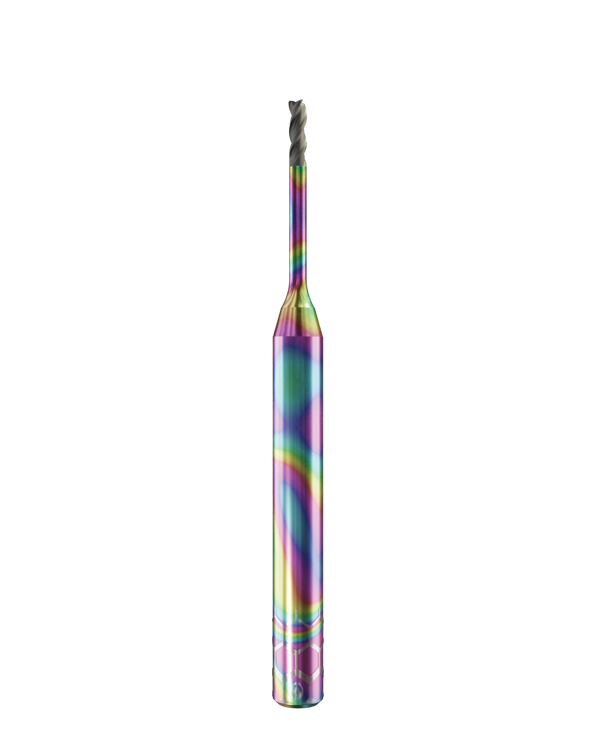

1.5mm 3-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 15.0mm Radius: 0.15mm Shaft: 4mm.
Invader Series: Rough+Finish Design
With Measurement Protocol
Original price was: $167.99.$139.99Current price is: $139.99.
1.5mm 3-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 15.0mm Radius: 0.15mm Shaft: 4mm.
Invader Series: Rough+Finish Design
With Measurement Protocol
14 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
3
Cutting Diameter (CD)
1.5mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.15mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
3.00mm
Reach Length (RL)
15.0mm
Neck Diameter (ND)
1.38mm
Overall Length (OL)
50mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
The Invader Series, The Invader Series - Double-Threat Version
Measurement Protocol (to 1 Micron)
Yes
Zecha SKU
576.T3.0150.015.150
