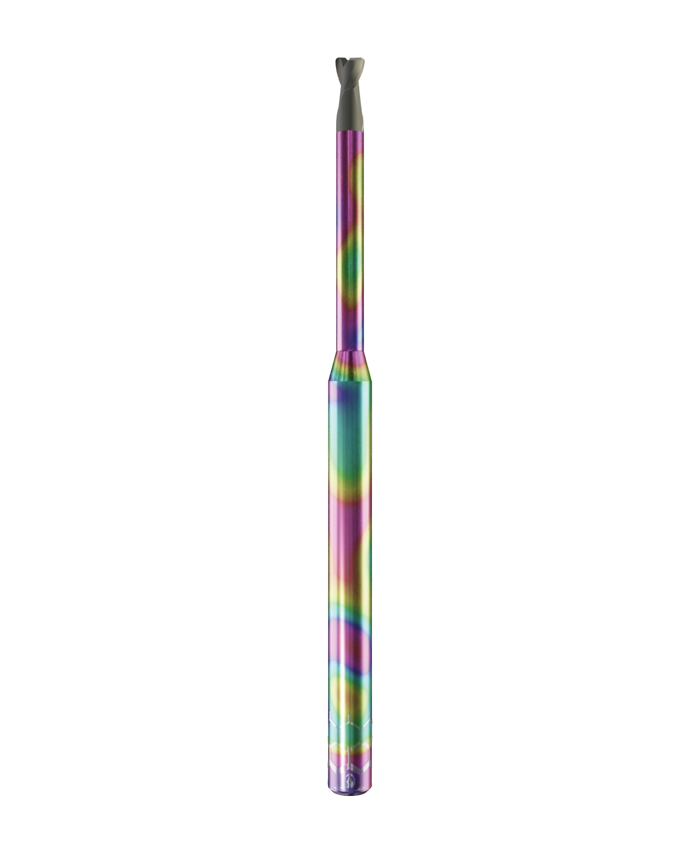

GT.DIA.T2.40.6.400.100.M
4.0mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 40.0mm Radius: 0.50mm Shaft: 6mm.
Original price was: $185.99.$154.99Current price is: $154.99.
4.0mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 40.0mm Radius: 0.50mm Shaft: 6mm.
10 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
2
Cutting Diameter (CD)
4.0mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.50mm
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
4.00mm
Reach Length (RL)
40.0mm
Neck Diameter (ND)
3.80mm
Overall Length (OL)
100mm
Shank Diameter (SD)
6mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
575.400.50.400
