GT.DIA.T2.20.4.200.60.J

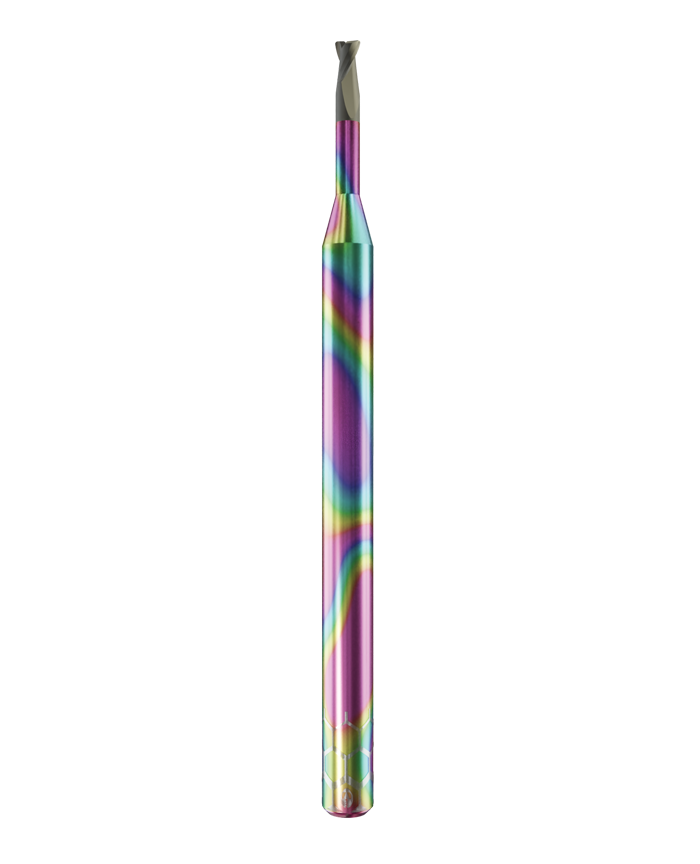

2.0mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 20.0mm Radius: 0.20mm Shaft: 4mm.
Original price was: $128.99.$106.99Current price is: $106.99.
2.0mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 20.0mm Radius: 0.20mm Shaft: 4mm.
10 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
2
Cutting Diameter (CD)
2.0mm
Cutting Diameter Tolerance
-0.015
Corner Radius (CR)
0.20mm
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
3.00mm
Reach Length (RL)
20.0mm
Neck Diameter (ND)
1.90mm
Overall Length (OL)
60mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
575.200.20.200
