INDUSTRIAL
GT.DIA.T2.08.4.080.60.F

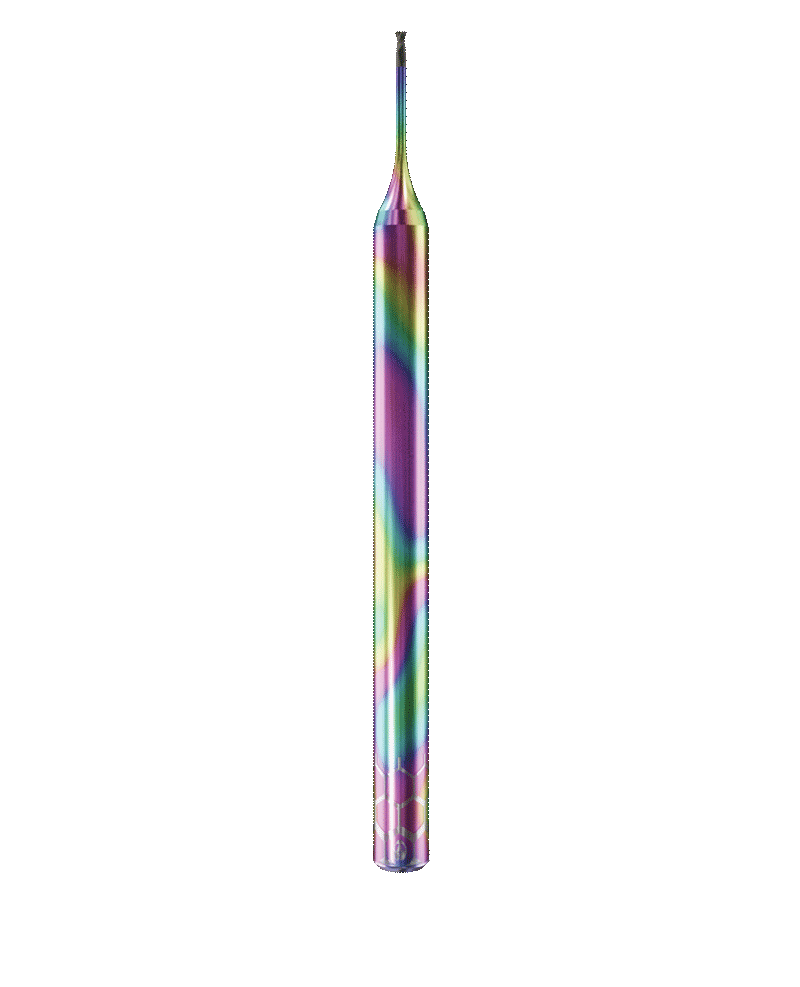

0.8mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 8.0mm Radius: 0.08mm Shaft: 4mm.
Original price was: $128.99.$106.99Current price is: $106.99.
0.8mm 2-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 8.0mm Radius: 0.08mm Shaft: 4mm.
5 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
2
Cutting Diameter (CD)
0.8mm
Cutting Diameter Tolerance
-0.015
Corner Radius (CR)
0.08mm
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
1.20mm
Reach Length (RL)
8.0mm
Neck Diameter (ND)
0.74mm
Overall Length (OL)
60mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
575.080.08.080
