INDUSTRIAL
GT.DIA.B2.60.6.300.60.X

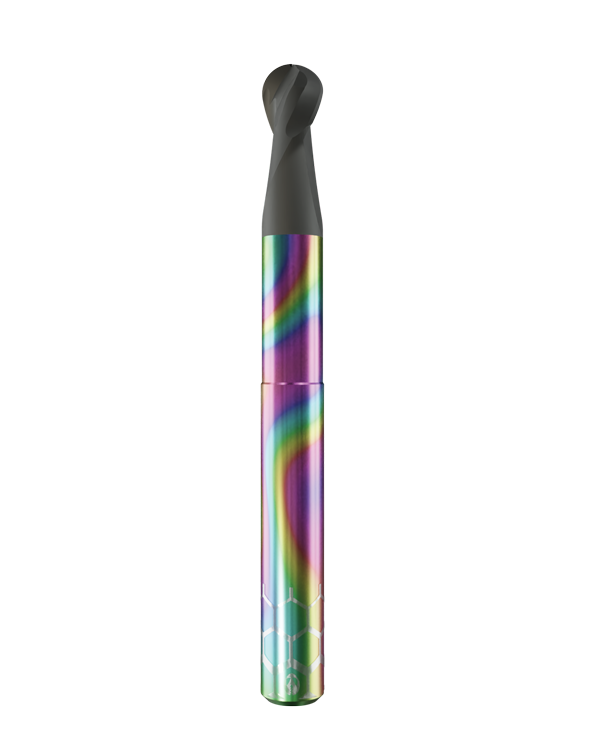

6.0mm 2-Flute Ball-Nosed Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 30.0mm Shaft: 6mm.
Original price was: $157.99.$130.99Current price is: $130.99.
6.0mm 2-Flute Ball-Nosed Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 30.0mm Shaft: 6mm.
13 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
6.0mm
Cutting Diameter Tolerance
-0.015
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
6.00mm
Reach Length (RL)
30.0mm
Neck Diameter (ND)
5.80mm
Overall Length (OL)
60mm
Shank Diameter (SD)
6mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
565.600.300.300
Calculator coming soon.
