INDUSTRIAL
GT.DIA.B2.06.4.060.60.X.INV*

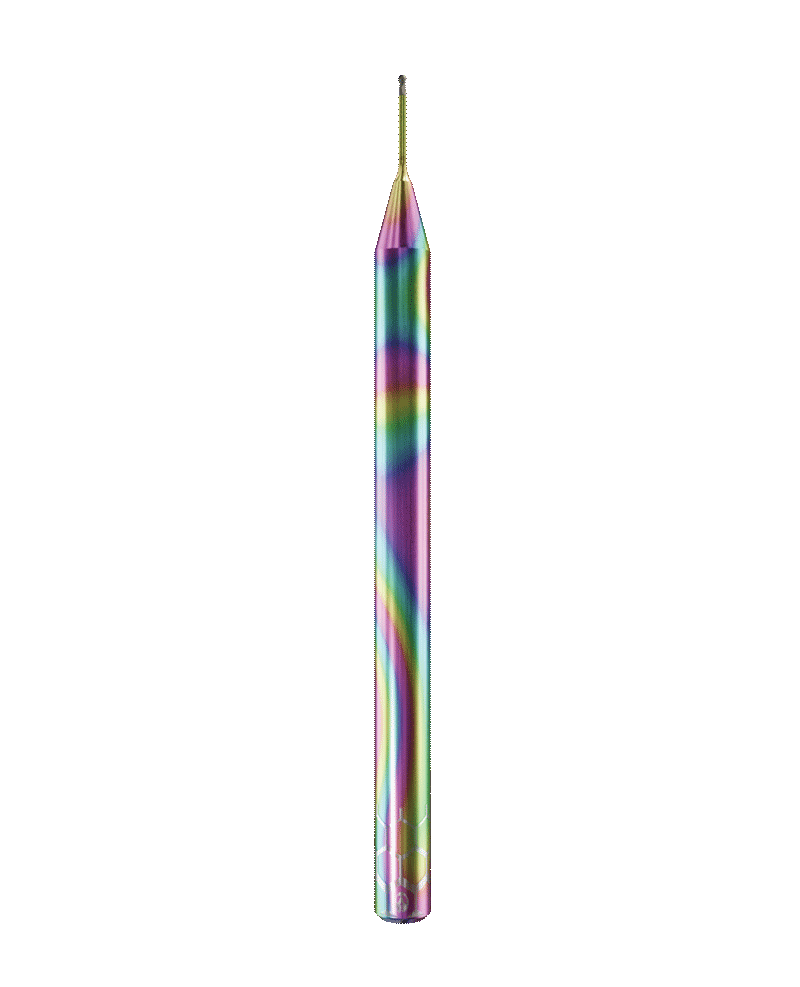

0.6mm 2-Flute Ball-Nosed Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 6.0mm Shaft: 4mm.
Invader Series
With Measurement Protocol
Original price was: $137.99.$114.99Current price is: $114.99.
0.6mm 2-Flute Ball-Nosed Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 6.0mm Shaft: 4mm.
Invader Series
With Measurement Protocol
10 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
0.6mm
Cutting Diameter Tolerance
-0.015
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
0.40mm
Reach Length (RL)
6.0mm
Neck Diameter (ND)
0.54mm
Overall Length (OL)
60mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
The Invader Series
Measurement Protocol (to 1 Micron)
Yes
Zecha SKU
568.0060.030.060
