INDUSTRIAL
GT.DIA.B2.05.4.050.60.X

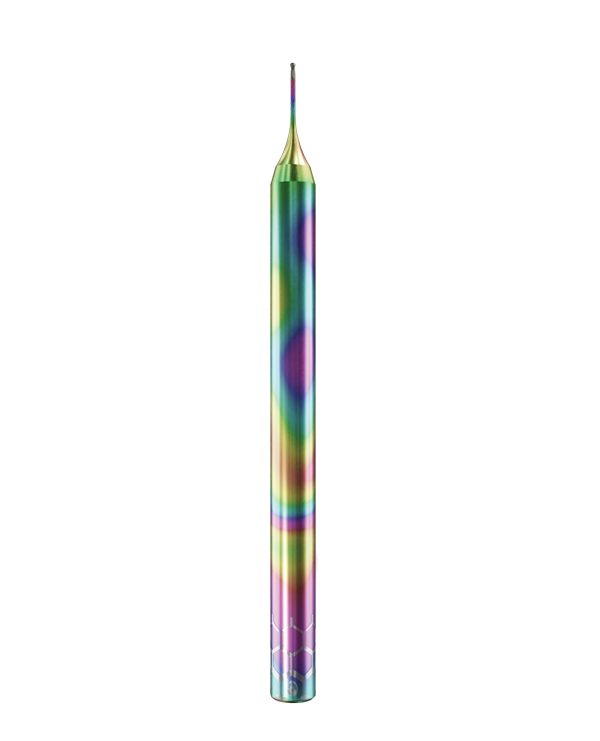

0.5mm 2-Flute Ball-Nosed Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 5.0mm Shaft: 4mm.
Original price was: $135.99.$112.99Current price is: $112.99.
0.5mm 2-Flute Ball-Nosed Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 5.0mm Shaft: 4mm.
27 in stock (can be backordered)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Tool Type
End Mill
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry (CG)
Ball-Nosed
Flutes
2
Cutting Diameter (CD)
0.5mm
Cutting Diameter Tolerance
-0.015
Corner Radius Tolerance
0.007/-0.007
Flute Length (FL)
0.70mm
Reach Length (RL)
5.0mm
Neck Diameter (ND)
0.44mm
Overall Length (OL)
60mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Measurement Protocol (to 1 Micron)
No
Zecha SKU
565.050.25.050
Calculator coming soon.
