9911.0600.050.240M

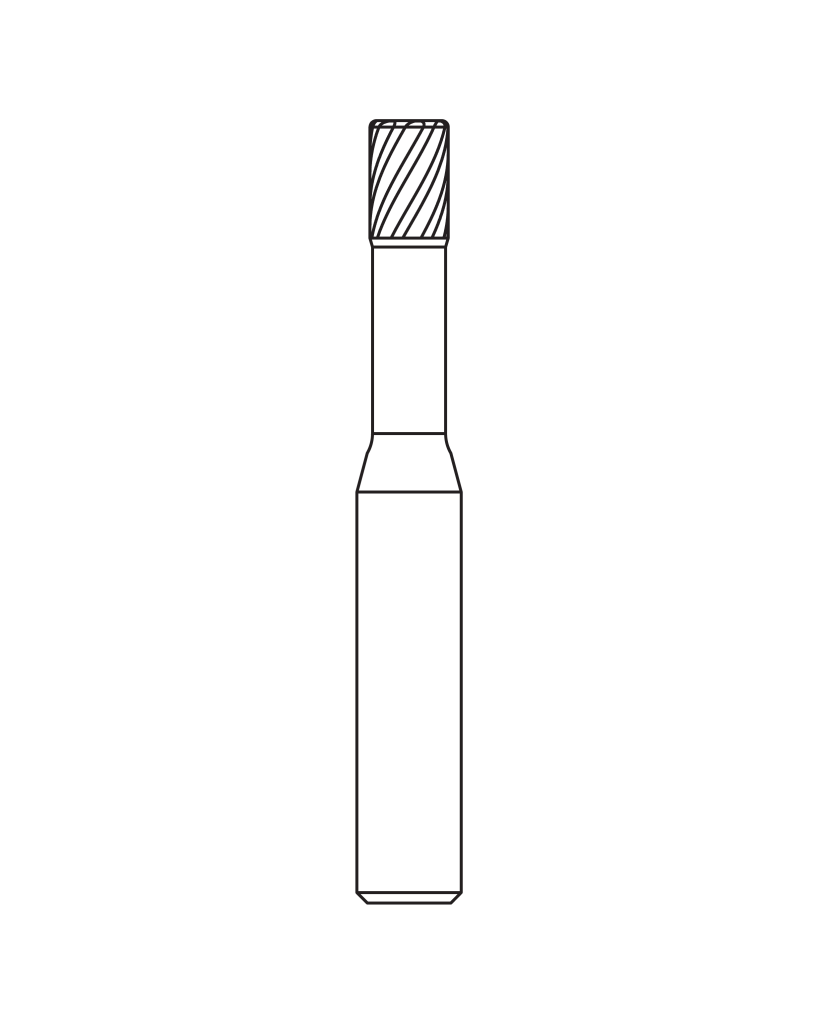

6.0mm 0-Flute Carbide Grinding Pin for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
Galvanic Diamond Coating, Reach: 24.0mm Radius: 0.50mm Shaft: 8mm.
MARLIN 3D Series
Original price was: $352.99.$293.99Current price is: $293.99.
6.0mm 0-Flute Carbide Grinding Pin for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
Galvanic Diamond Coating, Reach: 24.0mm Radius: 0.50mm Shaft: 8mm.
MARLIN 3D Series
24 in stock (can be backordered)
Milling Material
Alumina, Carbide, Ceramics, Glass
Tool Type
Grinding Pin
Coating Type (CT)
Galvanic Diamond Coating
Flutes
0
Cutting Diameter (CD)
6.0mm
Corner Radius (CR)
0.50mm
Flute Length (FL)
9.00mm
Reach Length (RL)
24.0mm
Overall Length (OL)
60mm
Shank Diameter (SD)
8mm
Shaft Tolerance
H4
Special Tool Series
Zecha Marlin 3D Series
Measurement Protocol (to 1 Micron)
No
Internal Coolant
yes
Shaft Coolant
Yes
Diamond Grain Size
Medium
