INDUSTRIAL
9910.0150.015.060M

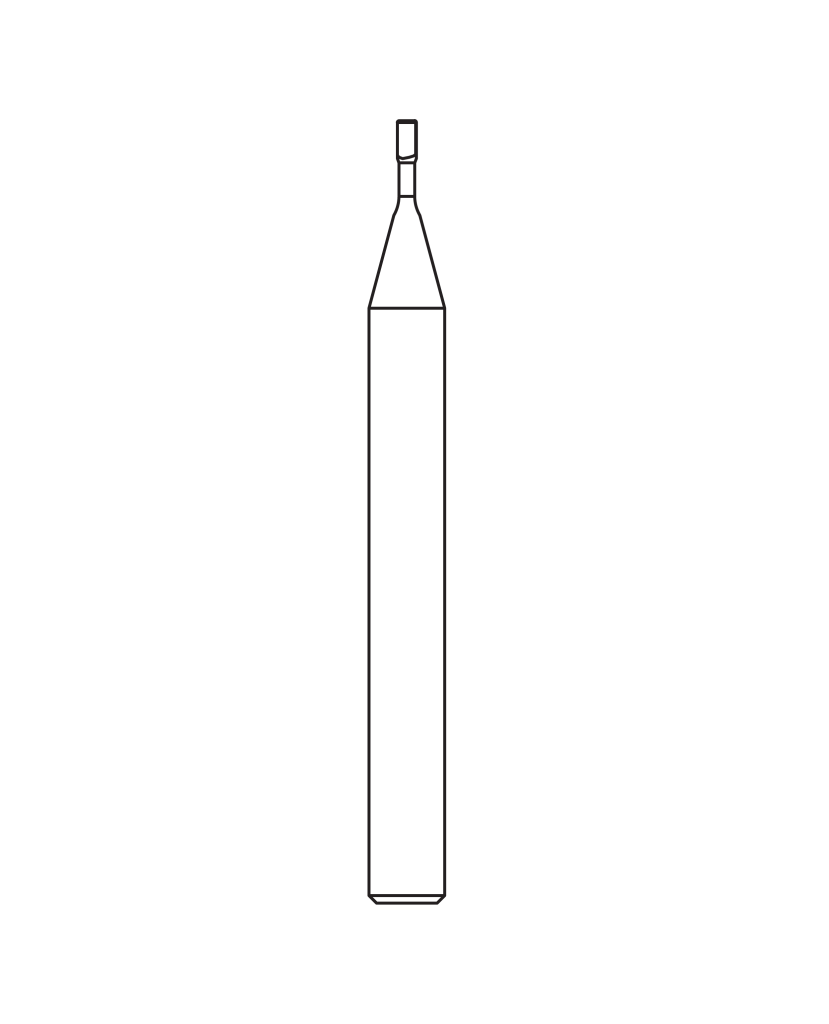

1.5mm 0-Flute Carbide Grinding Pin for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
Galvanic Diamond Coating, Reach: 6.0mm Radius: 0.15mm Shaft: 6mm.
MARLIN 3D Series
Original price was: $164.99.$136.99Current price is: $136.99.
1.5mm 0-Flute Carbide Grinding Pin for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
Galvanic Diamond Coating, Reach: 6.0mm Radius: 0.15mm Shaft: 6mm.
MARLIN 3D Series
7 in stock (can be backordered)
Milling Material
Alumina, Carbide, Ceramics, Glass
Tool Type
Grinding Pin
Coating Type (CT)
Galvanic Diamond Coating
Flutes
0
Cutting Diameter (CD)
1.5mm
Corner Radius (CR)
0.15mm
Flute Length (FL)
3.00mm
Reach Length (RL)
6.0mm
Overall Length (OL)
62mm
Shank Diameter (SD)
6mm
Shaft Tolerance
H4
Special Tool Series
Zecha Marlin 3D Series
Measurement Protocol (to 1 Micron)
No
Internal Coolant
no
Shaft Coolant
No
Diamond Grain Size
Medium
Calculator coming soon.
