962P.B4.0080.040.016

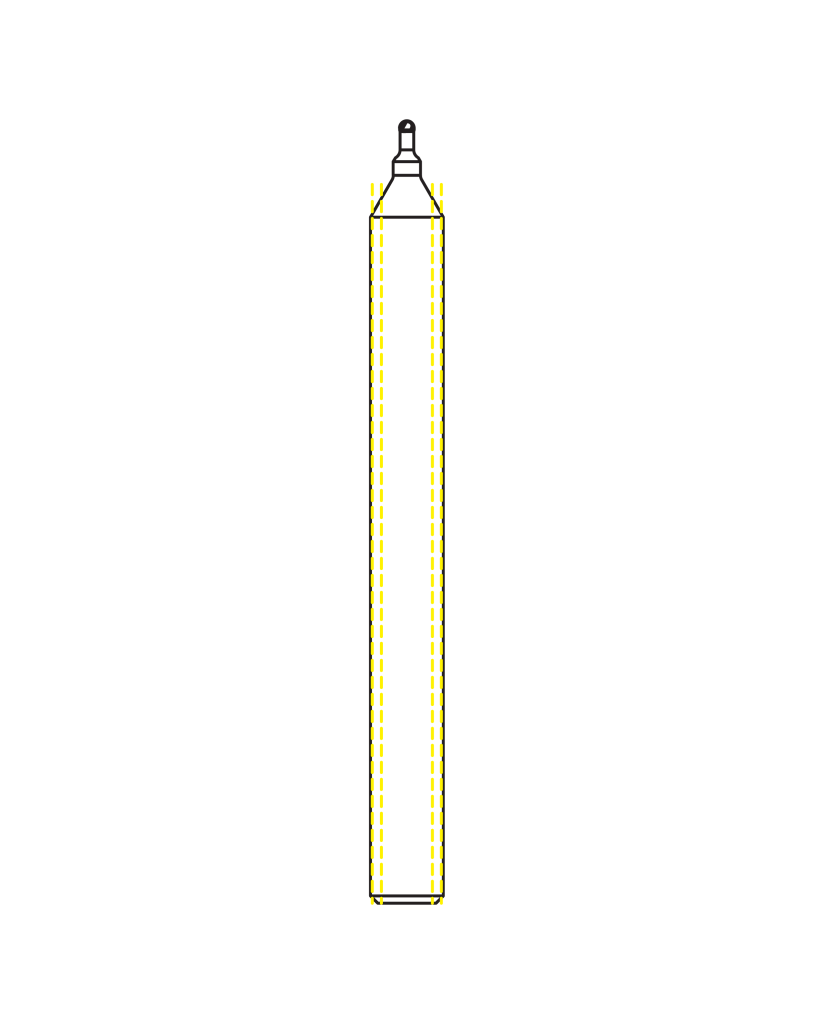

0.8mm 4-Flute Ball-Nosed Carbide End Mill for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
PCD Cutting Edges, Reach: 1.6mm Shaft: 4mm.
MARLIN 3D Series
Original price was: $839.99.$699.99Current price is: $699.99.
0.8mm 4-Flute Ball-Nosed Carbide End Mill for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
PCD Cutting Edges, Reach: 1.6mm Shaft: 4mm.
MARLIN 3D Series
Out of stock
Milling Material
Alumina, Carbide, Ceramics, Glass
Tool Type
End Mill
Coating Type (CT)
PCD Cutting Edges
Cutting Geometry (CG)
Ball-Nosed
Flutes
4
Cutting Diameter (CD)
0.8mm
Cutting Diameter Tolerance
0.003/-0.003
Corner Radius Tolerance
0.003/-0.003
Flute Length (FL)
0.50mm
Reach Length (RL)
1.6mm
Overall Length (OL)
43mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
Zecha Marlin 3D Series
Measurement Protocol (to 1 Micron)
Yes
Internal Coolant
no
Shaft Coolant
Yes
