INDUSTRIAL

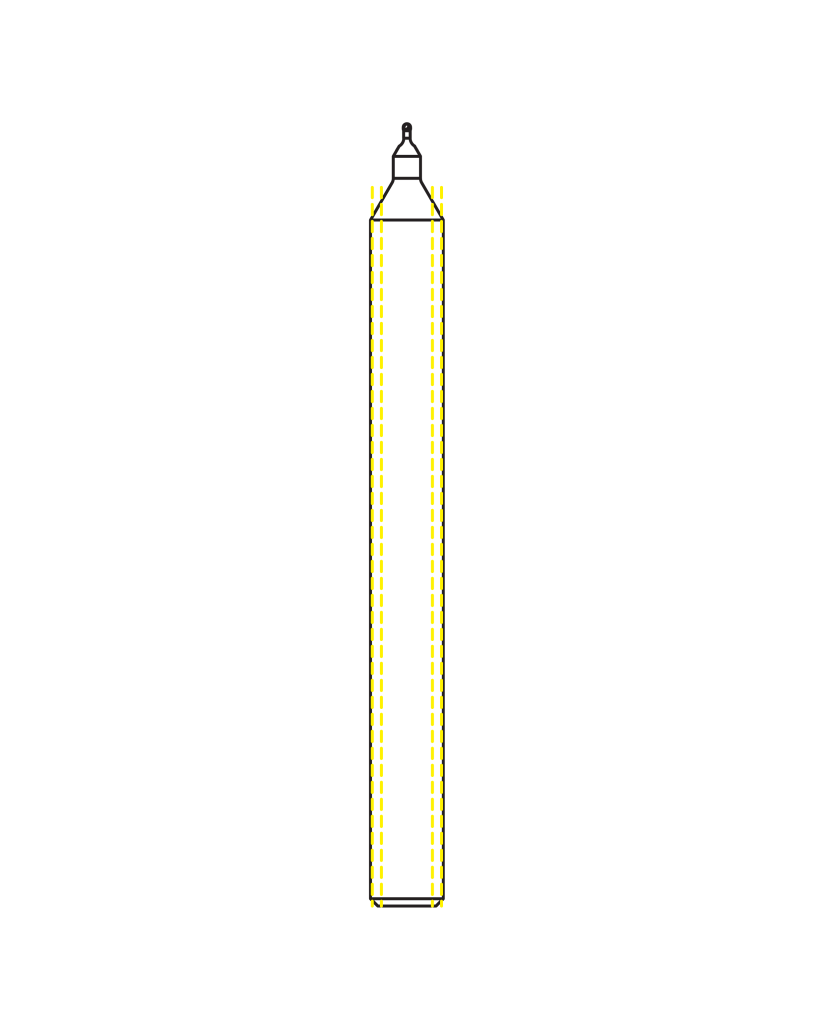

962P.B3.0040.020.008
0.4mm 3-Flute Ball-Nosed Carbide End Mill for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
PCD Cutting Edges, Reach: 0.8mm Shaft: 4mm.
MARLIN 3D Series
Original price was: $799.99.$665.99Current price is: $665.99.
0.4mm 3-Flute Ball-Nosed Carbide End Mill for Ceramics, Carbide, Alumina, Glass, and Other Abrasive Materials
PCD Cutting Edges, Reach: 0.8mm Shaft: 4mm.
MARLIN 3D Series
Out of stock
Milling Material
Alumina, Carbide, Ceramics, Glass
Tool Type
End Mill
Coating Type (CT)
PCD Cutting Edges
Cutting Geometry (CG)
Ball-Nosed
Flutes
3
Cutting Diameter (CD)
0.4mm
Cutting Diameter Tolerance
0.003/-0.003
Corner Radius Tolerance
0.003/-0.003
Flute Length (FL)
0.30mm
Reach Length (RL)
0.8mm
Overall Length (OL)
43mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
Zecha Marlin 3D Series
Measurement Protocol (to 1 Micron)
Yes
Internal Coolant
no
Shaft Coolant
Yes
