931.T3.0200.005.040

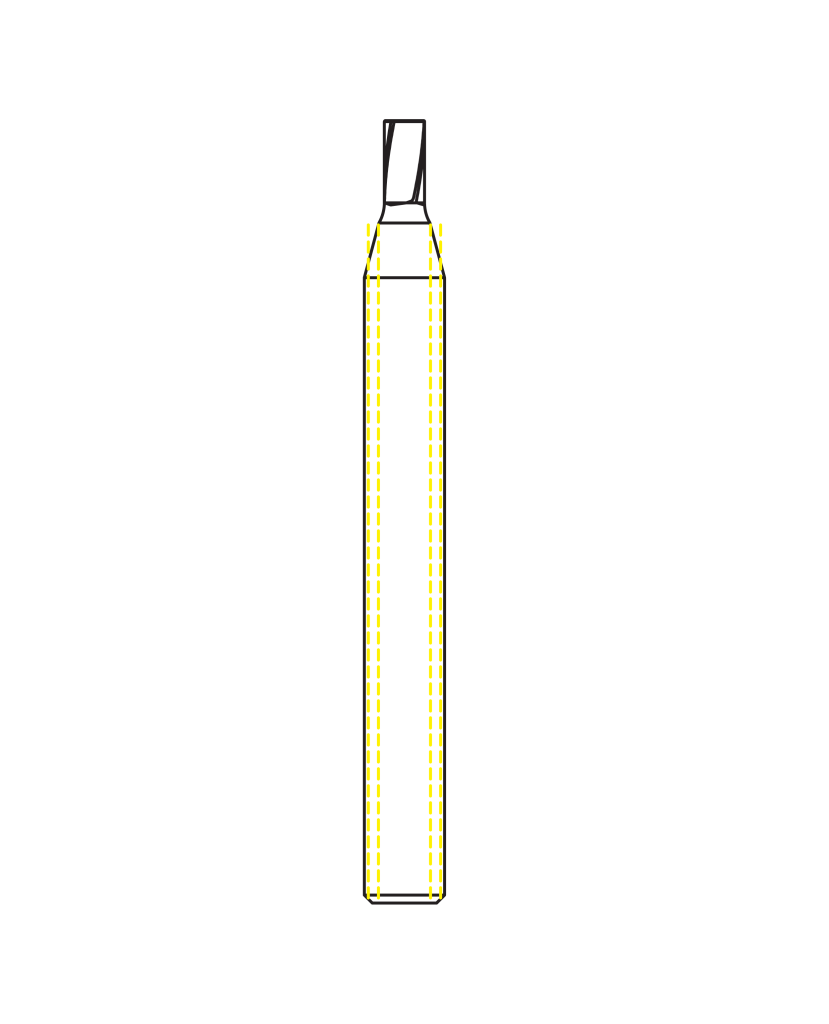

2.0mm 3-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
Laser-Sharpened Diamond Coating, Reach: 4.0mm Radius: 0.05mm Shaft: 4mm.
IGUANA Series
Original price was: $783.99.$652.99Current price is: $652.99.
2.0mm 3-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Non-Ferrous Metals/Abrasive Plastics
Laser-Sharpened Diamond Coating, Reach: 4.0mm Radius: 0.05mm Shaft: 4mm.
IGUANA Series
2 in stock (can be backordered)
Milling Material
Aluminum, Brass, Copper, Gold, Non-Ferrous, Plastic, Stainless Steel, Titanium
Tool Type
End Mill
Coating Type (CT)
2-Sided Laser-Sharpened Diamond Coating
Cutting Geometry (CG)
Bull-Nosed), Corner Radius (Toric
Flutes
3
Cutting Diameter (CD)
2.0mm
Cutting Diameter Tolerance
-0.01
Corner Radius (CR)
0.05mm
Corner Radius Tolerance
0.005/-0.005
Flute Length (FL)
4.00mm
Reach Length (RL)
4.0mm
Overall Length (OL)
39mm
Shank Diameter (SD)
4mm
Shaft Tolerance
H4
Special Tool Series
Zecha Iguana Series
Measurement Protocol (to 1 Micron)
Yes
Internal Coolant
no
Shaft Coolant
Yes
